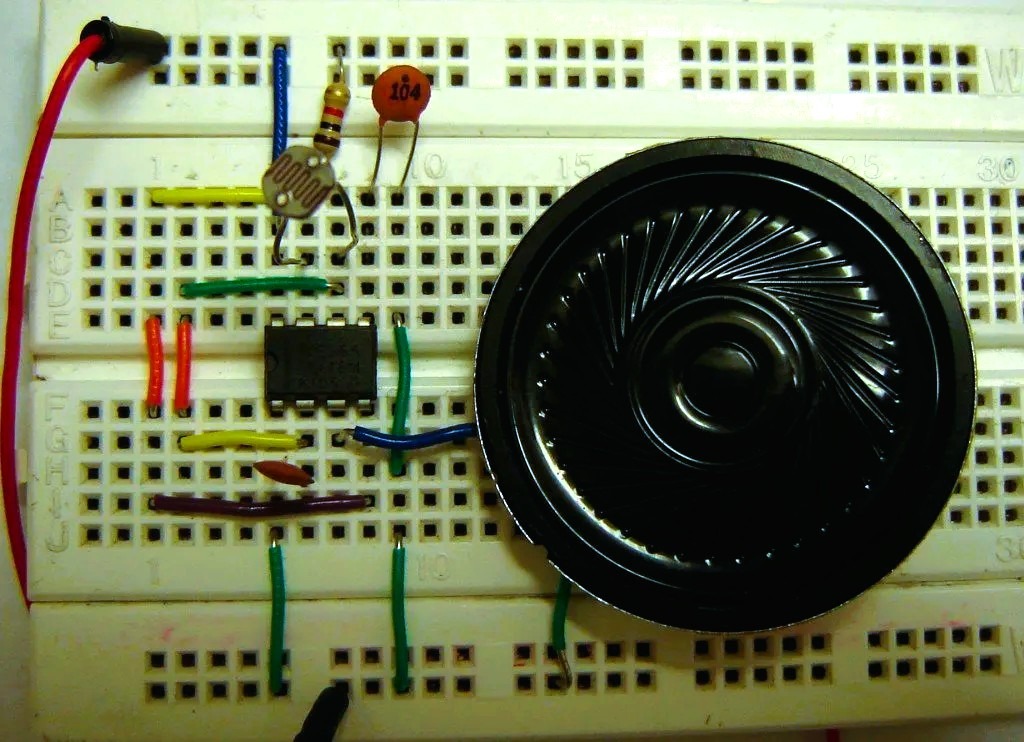

Making a minor modification in the previous circuit makes it work as an infrared transmitter. We can use this infrared transmitter for testing IR sensor circuit and making an infrared based object counter.
Components
- 22k Resister
- 10k Resister
- 330Ω Resister
- 555 Timer IC
- IR Bulb

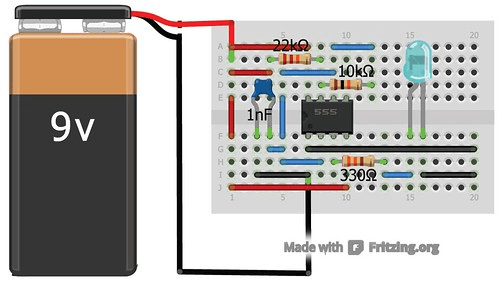

Circuit Diagram
